A Comprehensive Guide to Carpentry: Stud Calculation, Timber Types, and Framing Options

Carpentry is a vital trade within the construction industry, involving the shaping, cutting, and installing of building materials for various structures. In this guide, we’ll explore how to calculate the number of stud

s needed for a project, the types of timber suitable for house construction, and the differences between steel and timber framing, focusing on Australian standards.

How to Calculate the Number of Studs in a Project

Accurately calculating the number of studs required for a project is essential for efficient material use and cost management. Here’s how you can do it:

Measure the Wall Length: Start by measuring the total length of the wall where the studs will be installed.
Determine Stud Spacing: In Australia, standard stud spacing is either 450mm or 600mm on centre (OC), as specified in the Australian Standard AS 1684 – Residential Timber-Framed Construction.
Calculate the Number of Studs:
- Divide the total wall length by the stud spacing.
- Add one more stud for the end of the wall.
- Include extra studs for corners, intersections, and around openings like doors and windows.

Example Calculation: For a wall that’s 5 metres long with studs spaced 450mm apart:

Wall length = 5000mm
Stud spacing = 450mm

Number of studs = 5000 / 450 = 11.11 Round up to 12 studs and add 1 for the end = 13 studs.

Also, add 2 studs for each corner and additional studs for any openings.

Account for Openings: For doorways and windows, you’ll need extra studs such as trimmers and king studs. For example, a door that’s 1 metre wide would need:
- 2 trimmer studs per side = 4 studs
- 1 king stud per side = 2 studs
Total Calculation: Sum all the studs needed for the wall length, corners, and openings.

Types of Timber Used in House Construction

Timber is a versatile, sustainable building material widely used in house construction. Here are some common types of timber and their uses:

Radiata Pine:
- Characteristics: Fast-growing, moderately durable, and easy to work with.
- Uses: Framing, cladding, flooring, and general construction.
- Standards: Complies with AS/NZS 1748 – Timber – Solid – Stress-graded for structural purposes.
Tasmanian Oak:
- Characteristics: Hard, durable, and attractive grain.
- Uses: Flooring, furniture, and interior applications.
- Standards: Refer to AS 2796 – Timber – Hardwood – Sawn and milled products.
Jarrah:
- Characteristics: Extremely durable, termite-resistant, and rich red colour.
- Uses: Decking, flooring, and outdoor furniture.
- Standards: Covered under AS 5604 – Timber – Natural durability ratings.
Spotted Gum:
- Characteristics: Hard, durable, and resistant to fire and termites.
- Uses: Structural applications, flooring, and decking.
- Standards: Refer to AS 2082 – Timber – Hardwood – Visually stress-graded for structural purposes.
Merbau:
- Characteristics: Highly durable, termite-resistant, and reddish-brown colour.
- Uses: Decking, flooring, and outdoor applications.
- Standards: Covered under AS 2796.

Differences Between Steel Framing and Timber Framing

Both steel and timber framing have their own advantages and disadvantages. Here’s a comparison based on various factors:

1. Material Properties:

Timber:

Renewable Resource: Timber is a renewable and biodegradable resource.

Thermal Insulation: Timber provides better thermal insulation compared to steel.

Workability: Easier to cut, shape, and join on-site.

Steel:

Durability: Steel is not susceptible to termites, rot, or warping.

Strength: A high strength-to-weight ratio allows for longer spans and larger open spaces.

Consistency: Manufactured to precise specifications, reducing variability.

2. Construction Speed:

Timber:
- Faster to assemble with basic carpentry tools.
- Easier to make adjustments on-site.
Steel:
- Prefabricated components can speed up construction.
- Requires specialised tools and skills for assembly.

3. Environmental Impact:

Timber:
- Lower embodied energy and carbon footprint.
- Can be sourced sustainably (look for FSC or PEFC certification).
Steel:
- Higher embodied energy due to production processes.
- Can be recycled and reused, reducing waste.

4. Cost:

Timber:

Generally more cost-effective for residential projects.

Costs can vary based on timber type and quality.

Steel:

Higher initial cost but may offer savings in the long term due to durability and lower maintenance.

5. Compliance with Australian Standards:

Timber:
- AS 1684 – Residential Timber-Framed Construction provides comprehensive guidelines for timber framing.
- AS 1720.1 – Timber Structures Code specifies design and performance requirements.
Steel:
- AS 4100 – Steel Structures outlines the design of steel framing.
- AS/NZS 4600 – Cold-formed Steel Structures provides additional guidelines.

Practical Examples and Metrics

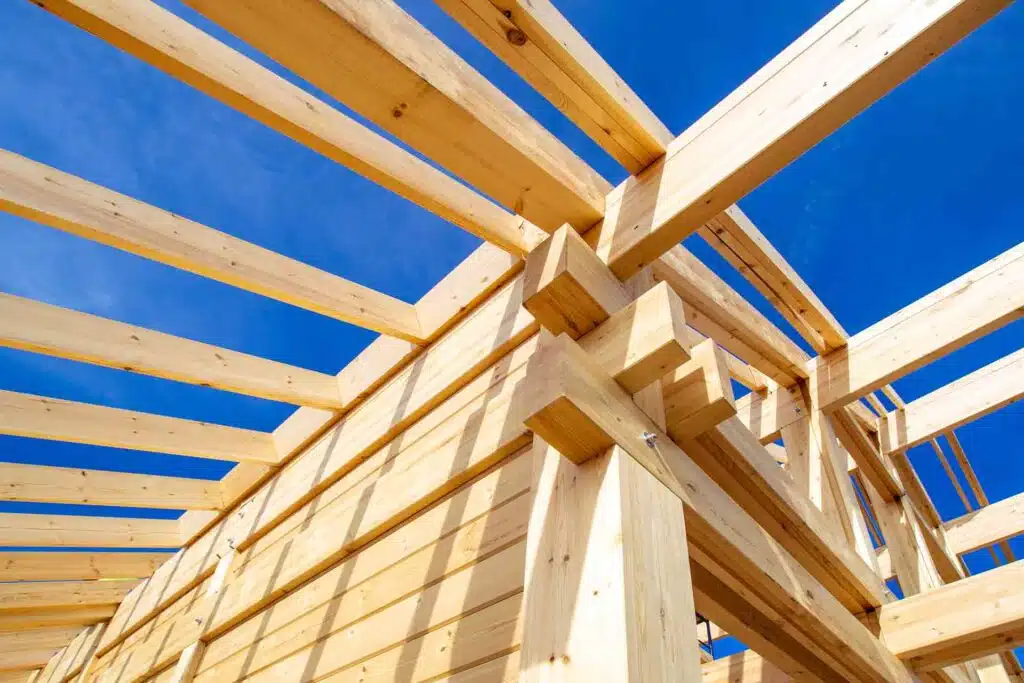

Timber Framing Example:

A typical Australian home using timber framing might involve the following steps:

Foundation: Concrete slab or raised timber floor.
Wall Framing: Studs spaced at 450mm OC, with additional studs for corners and openings.
Roof Framing: Timber trusses or rafters, adhering to AS 1684.

For a single-story house with a total wall length of 50 metres:

Wall length = 50,000mm
Stud spacing = 450mm

Number of studs = 50,000 / 450 = 111.11 Round up to 112 studs, plus additional for corners and openings.

Steel Framing Example:

A commercial building using steel framing might involve:

Foundation: Concrete slab with embedded anchor bolts.
Wall Framing: Steel studs at 600mm OC, with additional reinforcements for high-load areas.
Roof Framing: Steel trusses designed to AS 4100.

For a wall length of 30 metres with studs spaced 600mm apart:

Wall length = 30,000mm
Stud spacing = 600mm

Number of studs = 30,000 / 600 = 50 studs, plus additional for corners and openings.

You can find on the web some framing calculators to speed up the process. For example on Ammonite.com.

Australian Standards and Compliance

Ensuring compliance with Australian standards is crucial for safety, quality, and legality. Key standards include:

AS 1684 – Residential Timber-Framed Construction: Provides guidelines for the design and construction of timber-framed buildings.
AS 1720.1 – Timber Structures Code: Specifies the design criteria for timber structures.
AS 4100 – Steel Structures: Outlines the design requirements for steel-framed buildings.
AS/NZS 4600 – Cold-formed Steel Structures: Provides additional design guidelines for cold-formed steel framing.

Conclusion

Understanding how to calculate the number of studs, selecting the appropriate type of timber, and knowing the differences between steel and timber framing are fundamental skills for any carpenter. By adhering to Australian standards and using best practices, you can ensure the quality and durability of your construction projects. Whether you choose timber for its sustainability and thermal properties or steel for its strength and durability, each material has its place in the diverse world of construction.
